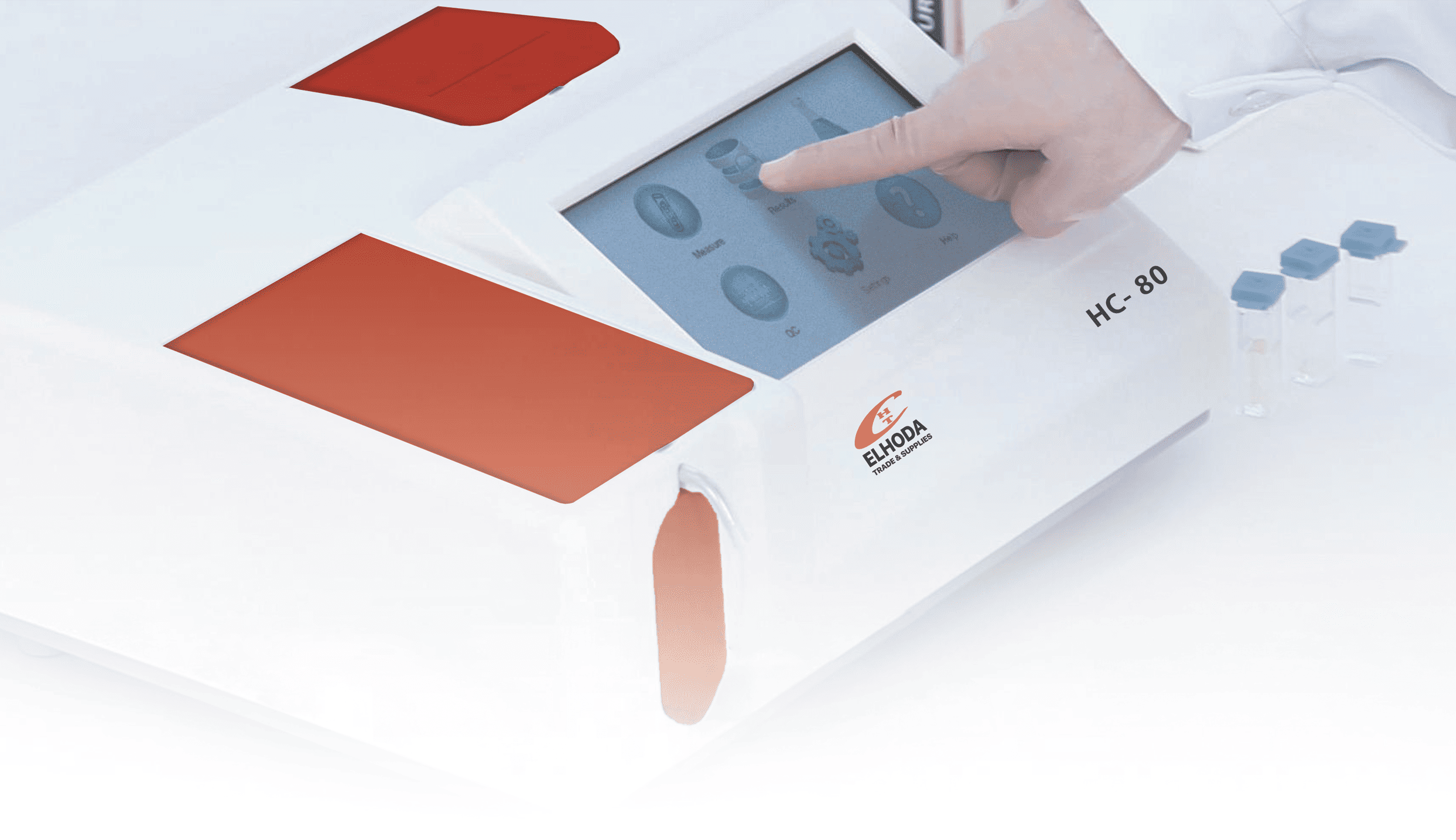

Semi-automatic Chemistry Analyzer
Large 7-inch color touch screen
High quality filters with 8 wavelengths
Flowcell & disposable cuvette mode

Shop now

Parameter	Specification
Analysis method	Endpoint, Kinetic, 2-point Kinetic, and Dual WL, ABS and polygon method
Light source	Halogen lamp, 6V/10W
Wavelength	8 wavelengths selectable (340nm, 405nm, 492nm, 510nm, 546nm, 578nm, 630nm, 700nm, 750nm, 800nm)
Absorbance range	0.3Abs – 4.0Abs
Accuracy bias	≤ ±2nm
Half broadband	≤10nm
Flowcell	Quartz cell, 10mm optical diameter, 32 μL volume; disposable cuvette optional
Temperature control	25°C, 30°C, and 37°C
Sampling volume	100 μL – 9999 μL, recommended >500 μL
Carry over rate	≤1.0%
Drift rate of absorbance	≤0.005Abs/20min
Memory	Up to 300 items, 20 curve items parameters, and 30,000 test results
Display	7-inch color touch screen, 800 × 480 resolution
Printer	Built-in thermal printer
Interface	1 SD, 3 USB, and 1 RJ-45
Ambient	Room temperature: 10°C – 35°C; humidity: 40% – 85%
Power	AC100–240V, 50/60Hz
Dimension	340mm (L) × 280mm (W) × 143mm (H)
Weight	About 5.1 kg

HC-80
