Highest Level of Chemical Assurance (ISO 11140-1 Type 5)

Product Code	Product Description	Package Contents (Per Unit)	Inner Box Quantity (Rolls)
PS 1830 (Also available as PS 1830 L)	Integrating Chemical Indicator Moving Line – Type 5	Single strip	Box of 500 pieces

2. Type 5 Integrator Steam (Triangle Indicator)

Product Code	Product Description	Package Contents (Per Unit)	Inner Box Quantity (Rolls)
PS 1840	Type 5 Integrator Steam	Single strip	Bag of 250 Indicators

Shop now

Type 5 Moving Line Integrator

Classification	ISO 11140-1 Part 1 Type 5 (Integrating Indicator)
Mechanism	A chemical pellet melts and travels through wicking paper.
Result Interpretation	PASS (ACCEPT): The bar moves completely past the REJECT/FAIL area to the ACCEPT window. FAIL (REJECT): The bar remains in the REJECT/FAIL area.
Operating Range	121∘C to 134∘C
Compliance & Design	CE Marked, UDI Numbered, Patented Design, Non-toxic.
Storage	Store between 10∘C – 38∘C in the resealable bag provided.

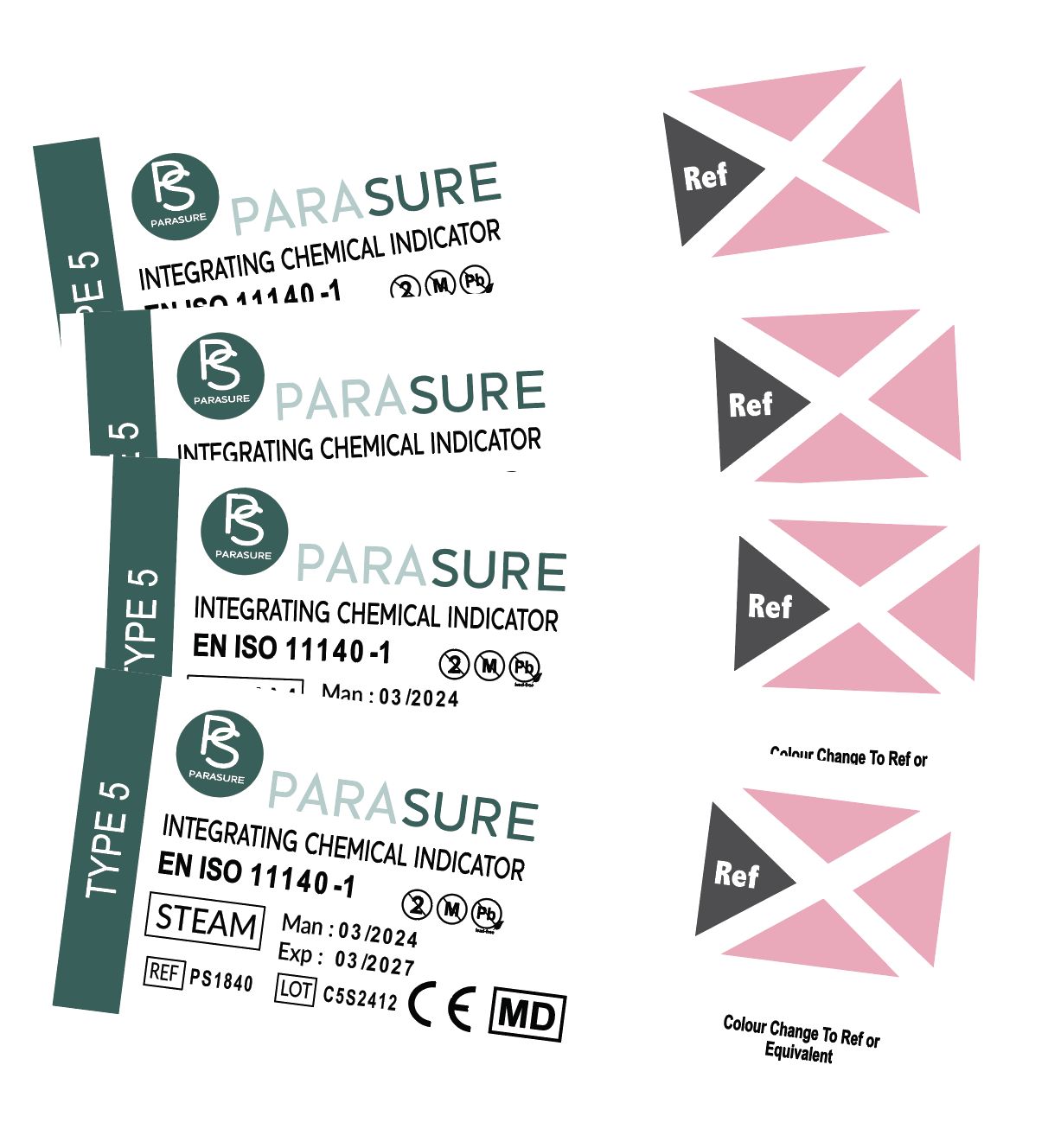

Type 5 Integrator Steam (Triangle Indicator)

Classification	EN ISO 11140-1 Type 5 (Integrating Indicator)
Monitored Parameters	Simultaneously monitors critical parameters: Time, Temperature, and Steam saturation.
Color Change	Clear and abrupt color change from pink/unprocessed to Black.
Result Interpretation	PASS: All additional triangles are now Black. FAIL: Only partial or no color change in the triangles.
Features	Non-toxic / Lead-free. Easy to interpret and record. For use in every tray or item.
Classification	EN ISO 11140-1 Type 5 (Integrating Indicator)

PARASURE® Type 5 Integrating Chemical Indicators

Overview
