Overview
Key Features
High-Volume Performance: Delivers a constant throughput of 400 tests per hour, increasing to 600 tests per hour with an optional ISE module.
Advanced Optical System: Features a 12-wavelength grating system ($340\text{nm}$ to $800\text{nm}$) and 90 high-transmittance reaction cuvettes.
Precision Fluidics: Utilizes a triple-probe system (Sample, Reagent A, and Reagent B) with independent high-performance stirrers to eliminate cross-contamination.
Intelligent Sensing: Probes include advanced liquid level detection, volume tracking, and horizontal/vertical collision protection.
Extended Loading Capacity: Equipped with 105 reagent positions and 77 sample positions to maximize walk-away time.
Superior Stability: Features a maintenance-free solid-phase heating system for constant $37\text{°C}$ incubation and 24-hour non-stop cooling for reagents.
Automated Hygiene: Includes an 8-step automatic washing system to ensure cuvette integrity and accurate results
| Model |

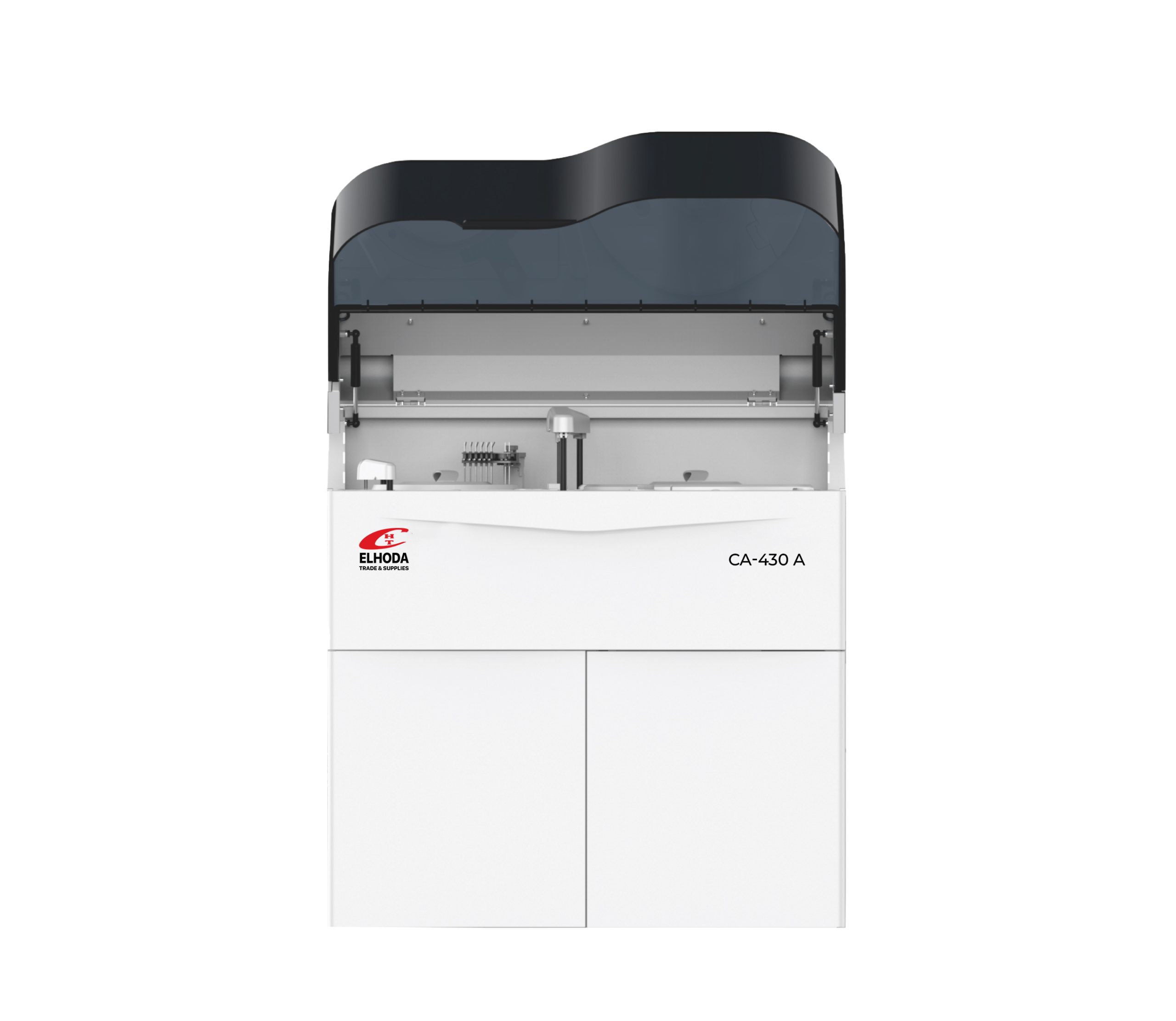

CA-430 (Automatic Chemistry Analyzer) |
| Throughput |
Constant 430 T/H (up to 620 T/H with optional ISE) |
| Reaction System |
120 reaction cuvettes |
| Reagent Capacity |
80 reagent positions |
| Sample Capacity |
80 sample positions |
| Incubation |
Solid direct heating incubation system |
| Cooling System |
24 hours non-stop, 2~8°C constant ice-free cooling system |
| Optical System |
Fully sealed grating optical system with 16 wavelengths |
